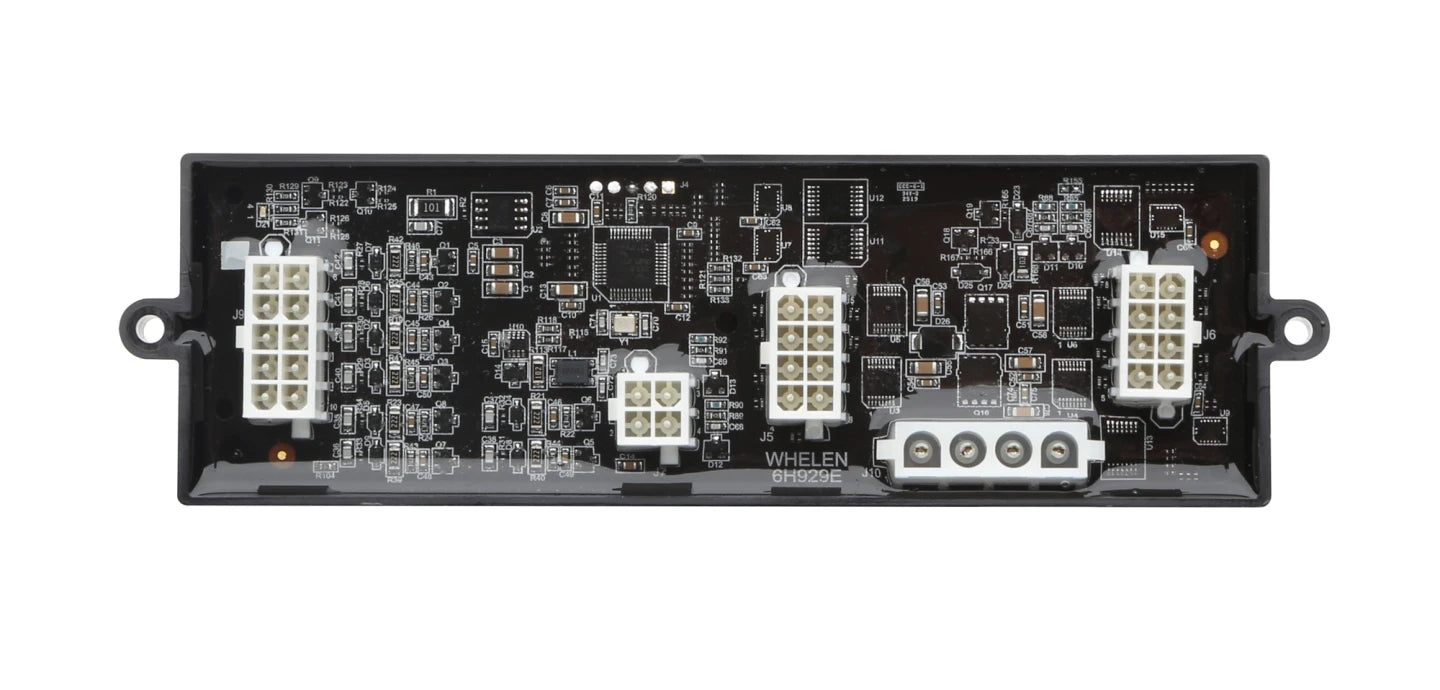

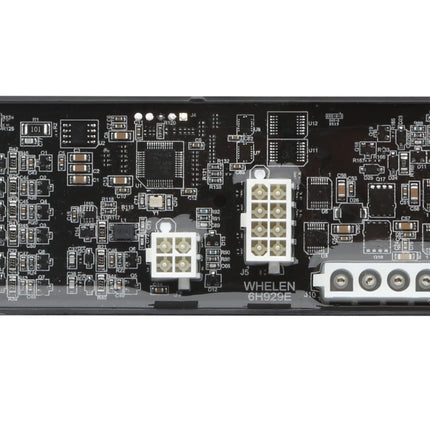

Expand your Whelen Core lighting control system with the Whelen CEM24 24-Output Expansion Module. Designed for use with Whelen Core-series control systems, the CEM24 provides 24 additional outputs for controlling warning lights and other vehicle functions.

Built for demanding emergency-vehicle applications, the CEM24 features a rugged, fully encapsulated design that provides excellent protection against moisture, vibration, and corrosion. Each output is rated at up to 2.5 amps, with an operating voltage range of 10–30 VDC.

Features

• 24 programmable outputs
• 2.5 amps per output
• 10–30 VDC operating voltage
• WeCanX® communication
• Compatible with Whelen Core-series control systems
• IP67-rated housing
• Fully encapsulated construction
• Designed for emergency and specialty vehicle applications
• Compact design for flexible installation
• Backed by Whelen's 10-year warranty

Compatible Systems

The CEM24 is designed for use with compatible Whelen Core systems, including:

• CenCom Core
• Core-C
• Core-R
• Core-S
• Core-R DOT

Specifications

Model: CEM24
Outputs: 24
Output Rating: 2.5 A per output
Operating Voltage: 10–30 VDC
Communication: WeCanX®
Ingress Protection: IP67
Dimensions: 6.5" W × 2.75" H × 1.50" D
